电源线

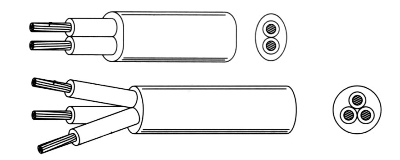

HO3VVH2-F HO3VV-F
PVC INsulated PVC Sheathed Flexible Cords PVC
绝缘PVC护套软电缆
Rating:300/300V 70℃
Standard:DIN VDE 0281-3 HD 22.4
| NO. of conductor 导体芯数 | Conductor导体 | Inslation thickness 绝缘厚度 (mm) | Sheath thickness 护套厚度 (mm) | Reference diameter 参考外径 (mm) | Max Conductor resistance at 20℃ 20℃时导体电阻最大值 Ω/km | ||
| Normal area 标称面积 (mm2) | Construction 结构 (No./mm) | Bare | Tinned | ||||
| 2 | 0.5 | 16/0.20或28/0.15 | 0.5 | 0.6 | 32±0.1×5.2±0.1 | 39.0 | 40.1 |
| 0.5 | 16/0.20或28/0.15 | 0.5 | 0.6 | 5.9±0.1 | 39.0 | 40.1 | |
| 0.75 | 24/0.20或42/0.15 | 0.5 | 0.6 | 3.7±0.1×5.8±0.1 | 26.0 | 26.7 | |
| 3 | 0.5 | 16/0.20或28/0.15 | 0.5 | 0.6 | 5.6±0.1 | 39.0 | 40.1 |
| 0.75 | 42/0.15或24/0.20 | 0.5 | 0.6 | 5.9±0.1 | 26.0 | 26.7 | |
